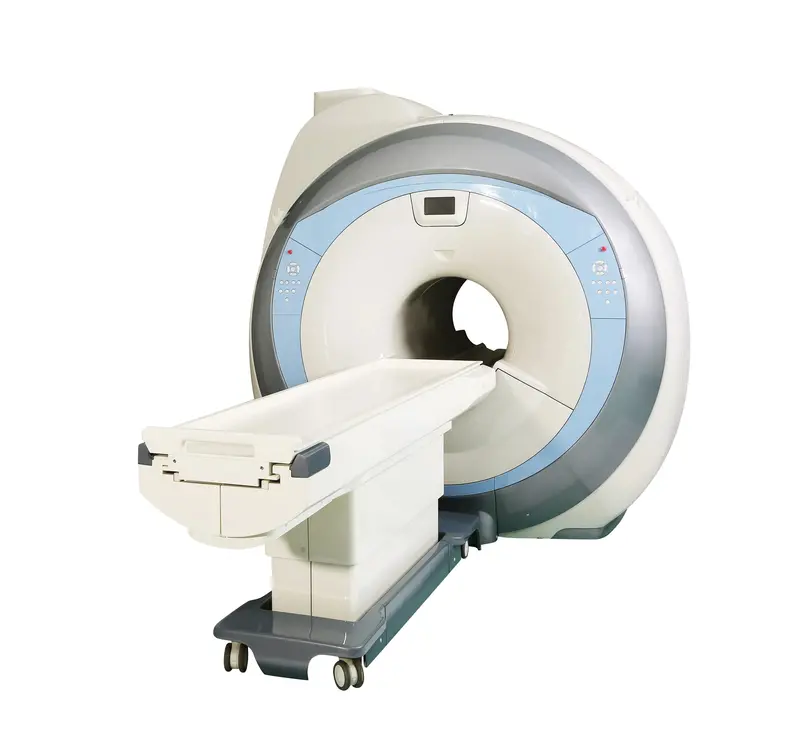

Experience Advanced Hospital MRI Technology: 1.5T Scanner Machine
Unveiling our state-of-the-art 1.5T MRI scanner machine, meticulously designed to meet the rigorous demands of hospital imaging. Dive into the technical specifications:
Magnet Parameters:
- Magnet Type: Permanent
- Magnetic Field Strength: 1.5T ± 5%
- Magnet Appearance: C-shape
- Weight: 12.8T ± 1.5%
- Horizontal Opening Angle: 320°
- 5 Gaussian Fringe Field: X, Y, Z directions ≤ 2.5m
Shimming:
- Shimming Methods: Passive Shimming + Active Shimming
- Magnetic Field Homogeneity (VRMS Measurement Method, 24 points 24 sides):
- 40cm DSV (VRMS): ≤ 2.0ppm
General Features:
- Gradient Type: Ultrafast solid-state technology
- Gradient Amplifier Cooling Type: Air cooling
- Gradient Coil Cooling Type: Air cooling
Gradient Performance:
- Max. Amplitude (Single Axis): 28mT/m
- Max. Slew Rate (Single Axis): 93T/m/s
- Min. Rise Time: 0.3ms
Resolution Parameters:
- Max. FOV: 400mm
- Min. FOV: 10mm
- Min. 2D Thickness: 1.0mm
- Min. 3D Thickness: 0.1mm
- Max. Acquisition Matrix: 1024×1024
- Min. TE (Spin Echo): 5ms
- Min. TR (Spin Echo): 11ms
- Min. TE (Gradient Echo): 2ms
- Min. TR (Gradient Echo): 5ms
- Max. b-value of DWI: 1000
RF Parameters:
- Type of RF System: Full digital transmitting and receiving
- RF Amplifier Maximum Power: 6 kW
- Receiving Channel Number: 4 channels
- Receiving Bandwidth: 1.25 MHz
Standard PA (Phased Array) Coils:
- Head Coil: 4 channels, suitable for head imaging, head MR angiography, TMJ imaging.
- Neck Coil: 2 channels, suitable for neck imaging, cervical spine imaging, neck MR angiography.
- Body Coil – 20” (Large): 4 channels, suitable for thorax region imaging, spine imaging, abdomen imaging, pelvis imaging, hip imaging.
Elevate your hospital’s imaging capabilities with our cutting-edge 1.5T MRI scanner machine, delivering unparalleled performance and precision in diagnostic imaging.
