Description

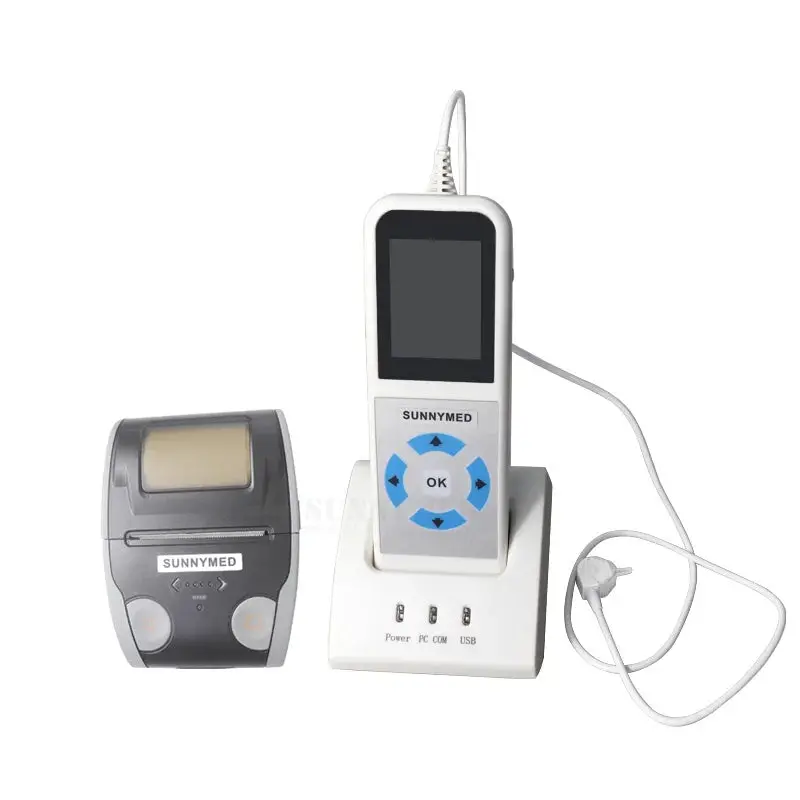

Introducing our latest innovation in newborn hearing screening technology – the OAE Hearing Screener with EOAE and DPOAE capabilities. Here are the key features that make it stand out:
- Stylish Design: Sleek and lightweight for easy handling.
- Language Options: Choose between Chinese and English display languages.
- User-Friendly Operation: Touch-button keypad ensures simple and intuitive operation.
- Clear Display: Color TFT-LCD monitor provides a clear view of menus and test results.
- Ample Storage: Store up to 200 test results for 50 patients in the device’s memory.
- On-Demand Printing: Test results can be instantly printed via Bluetooth for convenient record-keeping.
- Versatile Application: Suitable for clinics, office buildings, and medical wards, ensuring reliable data in various settings.
- Long Battery Life: Enjoy up to 8 hours of continuous operation on a single charge.
- Easy Maintenance: Detachable probe for effortless cleaning.
- Future Compatibility: Compatible with computers for saving and displaying test results (under development).
- Efficient Testing: Quick test capabilities with DPOAE completed in 10 seconds and TEOAE in 30 seconds.
- Customizable Models: Choose from three models with flexible configurations, including TEOAE, DPOAE, or both.
- Optional Accessories: Wireless Bluetooth printer available for rapid, wireless printing.
Product Specifications:
- Host Device Size: 1806221mm
- Host Device Net Weight: About 215g
- Monitor: 2.4-inch color TFT-LCD
- Keypad: 5 keys (Up, Down, Left, Right, OK)
- RAM: Up to 200 test results for 50 patients
- Power Adapter: DC 5V 1000mA
- Interface: Docking station for charging and data communication with the host computer
- Probe Interface: HDMI
- Probe Cable Length: 90cm
- Earplugs: Multiple sizes available
- Printer: Standard 58mm Bluetooth thermal printer
Models and Specifications:
- MSYG057-1: TEOAE+DPOAE
- MSYG057-2: DPOAE
- MSYG057-3: TEOAE
Test Methods:
- TEOAE+DPOAE
- DPOAE
- TEOAE
This OAE Hearing Screener is designed to provide accurate and efficient newborn hearing tests, ensuring early detection and intervention when necessary.
Detailed Specifications
| Model | MSYG057-1 | MSYG057-2 | MSYG057-3 |
| Test Method | TEOAE+DPOAE | DPOAE | TEOAE |
| Number of Frequency Bands | 6/4 | 4 | 6 |
| Evaluation Method | Noise-weighted Averaging, Counting of Significant Signal Peaks/ Phase statistics | Noise-weighted Phase Statistics | Noise-weighted Averaging, Counting of Significant Signal Peaks |
| Stimulus Type | Click Sound/ Primary tone pair, F2/F1=1.22 | Primary tone pair F2/F1=1.22 | Click Sound |
| Stimulus Level | 60~80dB /50~65dB SPL | 50~65dB SPL | 60~80dB SPL |
| Frequency Range | 1.5kHz~4kHz/2kHz, 3kHz , 4kHz ,5kHz |
2kHz,3kHz, 4kHz, 5kHz | 1.5kHz~4kHz |
| S/N | 6dB|4dB | 4dB | 6dB |
| Pass | 3 or more of the 6 frequencies/ 3 or more of the 4 frequencies | 3 or more of the 4 frequencies | 3 or more of the 6 frequencies |
| Display | Measurement Progress, S/N | Measurement Progress, S/N | Measurement Progress, S/N |
| Result Display | PASS/REFER | PASS/REFER | PASS/REFER |
Shipping & DeliveryThe machine ships in a wooden box Delivery time: 15 business days
