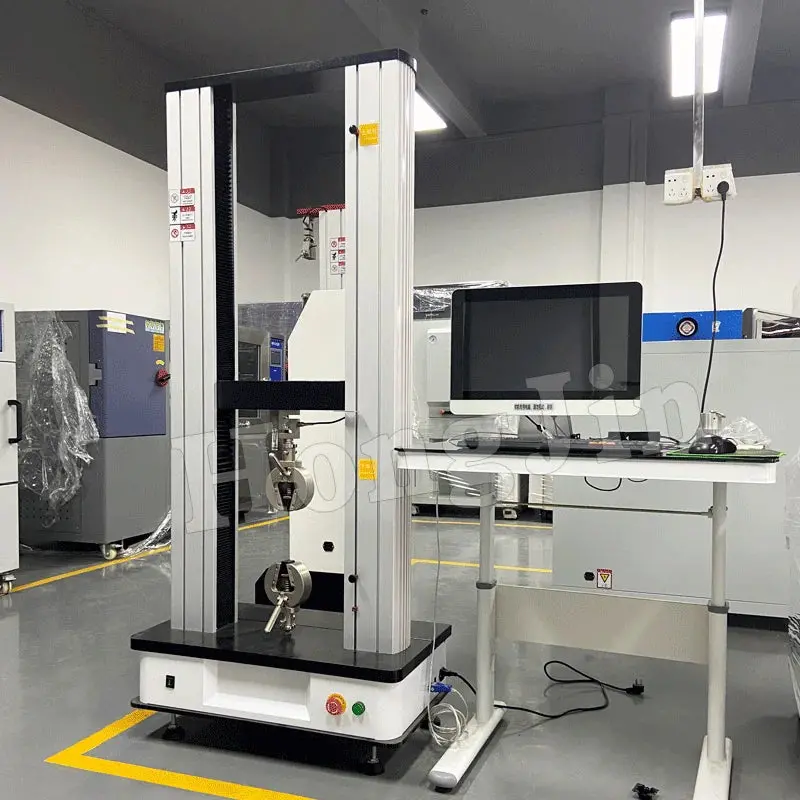

High-Capacity Electronic Universal Tester For Tensile, Compression, And Bend Analysis

Description

High Tensile Strength Test Equipment – Electronic Laboratory Universal Tensile Horizontal Machine for Cement

This versatile testing machine is designed for both metal and non-metal materials, making it ideal for a wide range of applications including rubber, plastic, wire and cable, optical fiber and cable, safety belts, leather belts, composite materials, plastic profiles, waterproof coils, steel pipes, copper materials, profiles, spring steel, bearing steel, stainless steel, casting, steel plates, steel belts, and non-ferrous metal wires. It performs various tests such as stretching, compression, bending, shearing, cutting, stripping, tearing, and two-point extension (with an extensometer).

Specifications:

• Test Items: Strength, power and select elongation, power and two-point extension
• Display Options:
  • 670 Power display
  • 680 Power extension display
  • 680 Plus 210 two-point extenders
• Units of Force: Kg, N, Lb, g
• Capacity Selection: 1, 2, 5, 10, 20, 50, 100, 200, 500kg up to 10000kg
• Load Precision: Less than 0.5%
• Maximum Stroke: Up to 1200mm without fixture
• Test Speed: Adjustable from 30 to 300mm/min
• Shutdown Modes: Upper and lower limit safety settings, emergency stop key, program force and elongation setting, and test piece breakpoint sensing
• Included Equipment: Standard preparation fixture set, user manual, and product warranty card
• Power Source: AC motor
• Extension Units: mm, cm, in, %
• Force Resolution: 1/50000
• Effective Test Space: Diameter range 400mm

This high-performance testing machine is essential for laboratories requiring precise and reliable testing of various materials. Its advanced features ensure accurate measurement and safety during operations.

• Warranty : 1 Year
• Power : Electronic, AC servo motor
• Test items : Strength,compress and selective elongation,etc
• Capacity selection : 1,2,5,10,20,50,100,200,500kgf
• Load cell accuracy : 0.5%
• Monitor : PC display
• Extension unit : mm,cm,in,%
• Power resolution : 1/200,000
• Test effective space : 120mm diameter range
• Unit of strength : Kgf,N,KN,Lb,g
