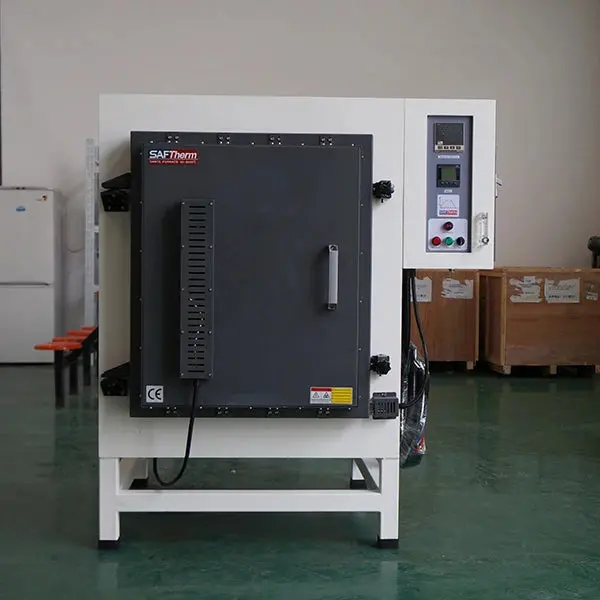

Industrial-Grade Electric Sintering Furnace For Manufacturing Applications

Description

The 1200C High Temperature Ceramic Kiln is designed for laboratory applications requiring reliable and accurate data. Featuring high-quality furnace materials and a stable temperature control system, it ensures the reliability of experimental results. The kiln uses high-purity alumina material for insulation and high-quality HRE alloy resistance wire for the heating element. The temperature controller employs a microcomputer PID control module for precise and consistent temperature control.

Models and Specifications:

Model	Chamber Size (W x D x H) mm	Rated Temperature	Work Temperature	Power Supply	Heating Element
STD45-212	300 x 500 x 300	1200℃	1100℃	380V/12KW	HRE Alloy Resistance Wire
STD64-129	400 x 400 x 400	1200℃	1100℃	380V/15KW	HRE Alloy Resistance Wire
STD80-121	400 x 500 x 400	1200℃	1100℃	380V/16KW	HRE Alloy Resistance Wire
STD96-127	400 x 600 x 400	1200℃	1100℃	380V/18KW	HRE Alloy Resistance Wire
STD-1001277	400 x 530 x 460	1200℃	1100℃	380V/18KW	HRE Alloy Resistance Wire
STD150-1288	450 x 530 x 590	1200℃	1100℃	380V/24KW	HRE Alloy Resistance Wire
STD200-1244	500 x 530 x 720	1200℃	1100℃	380V/27KW	HRE Alloy Resistance Wire

 Features:

1. Insulation Material: The kiln uses high-purity alumina ceramic fiber material, which is vacuum-formed and does not produce powder at high temperatures. This results in small heat capacity and energy savings of over 50%.
2. Auto Lifting Door: Easy to operate with an automatic lifting mechanism.
3. Heating Element: High-quality HRE alloy resistance wire capable of bearing large loads and ensuring long service life. The wire is evenly arranged on three sides for excellent temperature uniformity.
4. Patented Temperature Control: Features a fast heating rate and good temperature uniformity, reaching 1200℃ within 60 minutes, enhancing sintering efficiency by more than three times compared to industry standards.
5. High Temperature Accuracy: Offers precise temperature control with an accuracy of ±1°C.
6. Intelligent PID Control: Utilizes SHIMADEN intelligent PID temperature control instrument with programmable capabilities for up to 32 segments.
7. Safety and Reliability: Equipped with Schneider electronic components and leakage protection for safe operation.
8. Over-Temperature Alarm: Automatically sends out an alarm signal and completes protective actions during over-temperature conditions.
9. Easy Operation: Set the program and press the run button for automatic completion of the work cycle.
10. Optional Features: Includes options for a large-screen paperless recorder or RS232 communication interface for real-time recording and analysis of temperature rise curves, with memory card support for data analysis and printing.

Furnace Chamber Material:

The kiln offers different furnace materials based on temperature requirements. Common materials include ceramic fiber and Mullite brick for standard applications, with hollow ball alumina material available for higher temperature needs.

Standard Device Package:

1. Furnace Main Body: 1 set
2. Temperature Controller: 1 pc
3. Power Line: 3 meters
4. Thermocouple: 1 pc
5. Operation Manual: 1 pc
6. Crucible Tong: 1 pc
7. High Temperature Gloves: 1 pair

Quality Certification:

Certified by ISO9001, CE, SGS, and TUV standards.

The 1200C High Temperature Ceramic Kiln is an efficient and reliable solution for laboratory heat treatment processes, ensuring precise and consistent results.

• Condition : New
• Type : Resistance Furnace, industrial box furnace
• Usage : Heat Treatment Furnace
• Warranty of core components : 3 years
• Voltage : 380V
• Dimension(L*W*H) : 800*1000*1250mm
• Weight (T) : 0.6 T
• Power (kW) : 20
• Warranty : 3 years
• Application : sintering
• Working temperature : 1100℃
• Heating element : HRE
• Power supply : 380V/50Hz-60Hz
• Temperature control : 1C/-1C
• Thermocouple : N type
