Description

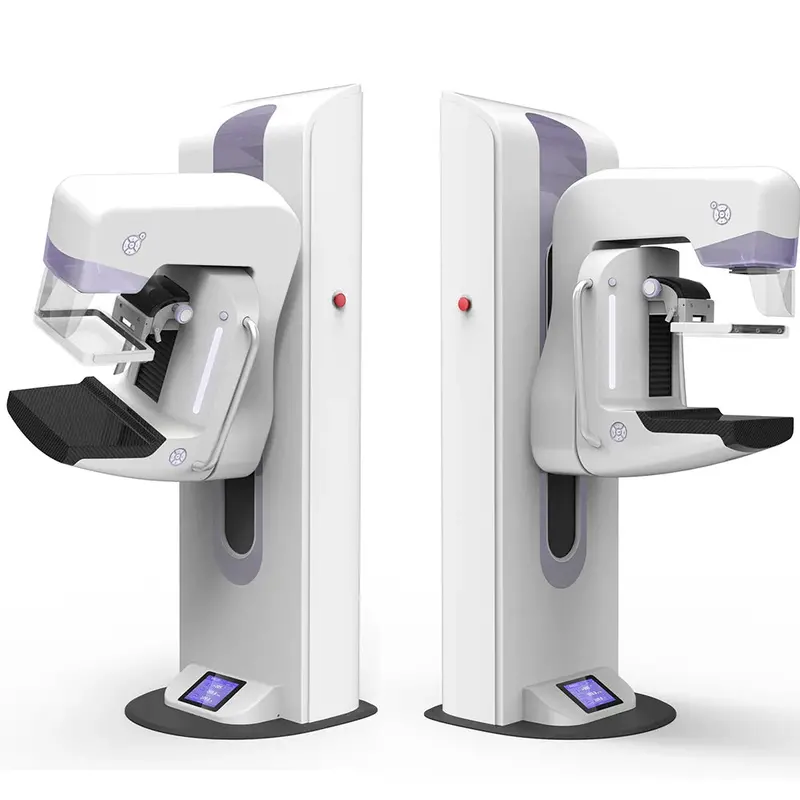

Introducing our advanced Digital Mammography System, designed to revolutionize breast examinations with cutting-edge technology and precise specifications:
- High Voltage Generator Type: Operates with a high-frequency inverter design for optimal performance.
- X-ray Tube Voltage: Adjustable within the range of 20-40kV (in 0.5kV increments), providing versatile settings for varied examinations.
- X-ray Tube Current: Ranges from 10mA to 160mA, ensuring accurate imaging with customizable intensity.
- Maximum Output Power: Offers a maximum power of 5kW (40kV, 125mA), guaranteeing efficient operation even at high settings.
- Radiograph Time: Adjustable from 0.005 to 10 seconds, facilitating swift yet detailed scans.
- mAs Range: From 0.5mAs to 560mAs, providing flexibility in exposure control for diverse patient needs.
- Exposure Control Modes: Equipped with manual, semi-automatic, and automatic modes for user convenience.
- Radiating Mode: Features cross-ventilation for enhanced safety and consistent performance.
- X-ray Tube: Utilizes the XM15 HMT-113 tube with options for small and big focus sizes (0.1mm/0.3mm), ensuring precision in imaging.
- Anode Heat Capacity: With a maximum capacity of 225kJ (300kHU), suitable for intensive usage in clinical settings.
- Anode Cooling: Utilizes efficient oil cooling mechanisms to maintain optimal operating temperatures.
- Radiation Field and Filtration: Offers a broad radiation field (18cm-50cm) with inherent (0.5mmBe) and additional (0.03mmMo) filtration for enhanced safety and image quality.
- Anode Speed: Adjustable between low-speed (3000r/min) and high-speed (10000r/min) settings for versatile imaging requirements.
- C Arm Frame: Provides extensive vertical and rotational ranges of motion for optimal positioning during examinations.
- FPD (Flat Panel Detector): Features high-resolution imaging capabilities (2816*3584 pixels) with a pixel size of 85um and ≥16bit grayscale depth for detailed and accurate results.
- Collimator: Equipped with precise collimation options and filtration for targeted imaging and reduced radiation exposure.
- Image Acquisition Workstation: Offers a comprehensive workstation with a large screen (19″), ample memory (≥8G), and DICOM compatibility for seamless integration with hospital systems.
- Integrated Design: Boasts an integrated design with the high-voltage generator, streamlining workflow and simplifying operation.
Our Digital Mammography System combines precision, efficiency, and safety, making it an indispensable tool for modern breast examinations in medical facilities.
Specifications
| Digital Mammography System | |||
| High voltage generator | Type | High frequency inverter type | |
| X-ray tube voltage | 20-40kV(step 0.5kV) | ||
| X-ray tube current | 10mA-160mA | ||
| Maximum output power | 5kW(40kV,125mA) | ||
| Nominal power | 4.8kW(30kV,160mA,0.1s) | ||
| Radiograph time | 0.005-10s | ||
| mAs | 0.5mAS~560mAs | ||
| Minimum mAs | 0.5mAs(50ms 10mA) | ||
| Maximun mAs | 560mAs | ||
| Minimum mAs in AEC | 6.3mAs | ||
| Exposure control | manual ,semi-auto,auto | ||
| Radiating mode | cross-ventilation | ||
| X-ray tube | XM15 | HMT-113 | |
| small focus/big focus | small focus/big focus | ||
| Focus size | 0.1mm/0.3mm | 0.1mm/0.3mm | |
| Maximum anode heat capacity | 225kJ(300kHU) | 225kJ(300kHU) | |
| Maximum heat dissipation | 500W | 500W | |
| Anode cooling mode | oil cooling | oil cooling | |
| Nominal voltage | 40kV | 40kV | |
| Target angle | 15° | 10°/16° | |
| Target material | Mo | Mo | |
| Radiation field | 18cm-50cm | 18cm-50cm | |
| Inherent filtration | 0.5mmBe | 0.5mmBe | |
| Additional filtration | 0.03mmMo | / | |
| Anode speed | low-speed3000r/min; high-speed 10000r/min | low-speed3000r/min; high-speed 10000r/min | |
| Anode input power | 1.15-2KW / 4.8-9kW | 0.7-1.35kW / 2.9-4.9kW | |
| X-ray tube socket (C339v) | |||
| Additional filtration | 0.03mmMo | ||
| Weight | 13kg | ||
| C Arm frame | |||
| vertical range of motion | 630-1400mm，deviation±5% | ||
| Rotation range of motion | +195°~-155°Angular division value 1°，deviation±2% | ||
| FID | 660mm,deviation±5% | ||
| 3D tomographic axial rotation | +30°~-30°deviation±2% | ||
| Rotate Mode | power-drive double speed rotate | ||
| Preset angle and memory function | |||
| Oppression plate | range of motion | 245mm,deviation±10% | |
| range of motion in 1.5 times platfo | 150mm,deviation±10% | ||
| range of motion in 1.8 times platfo | 75mm,deviation±10% | ||
| Operation mode | Manual/Auto | ||
| Pressure range | 0-300N（Manual）150-200N（Auto） | ||
| FPD | AXS-2430 | HMD-2430 | |
| Pixel unit | 85um | 85um | |
| Effective pixel size | 239.36*304.64mm | 239.36*304.64mm | |
| Pixel matirx | 2816*3584 pixels | 2816*3584 pixels | |
| Spatial resolution | ≥7 lp/mm | ≥7 lp/mm | |
| Cooling mode | fan cooling | fan cooling | |
| Grayscale | ≥16bit | ≥16bit | |
| DQE | ≥50% | ≥50% | |
| Grid | |||
| Grid proportion | 5:1 | ||
| Size | 338*264mm | ||
| line pair | 36lp/cm | ||
| focus | 66cm | ||
| Collimator (HMC-915) | |||
| Power supply | 24V DC,2A | ||
| Radiation field | Min 5*5cm/Max 24*30cm | ||
| Radiograph platform | Field 24*30cm SID 660mm,deviation±5% | ||
| 1.5 times radiograph platform | Field 16*20cm SID 440mm,deviation±5% | ||
| 1.8 times radiograph platform | Field 13.6*16.7cm SID 366.7mm,deviation±5% | ||
| Collimator (HMC-915) | Inherent filtration | 0.02mmAl |
| Additional filtration | 0.03mmMo /0.025Rh | |
| Illumination in max SID | >160Lux | |
| Timer | Button/Auto，30s timer | |
| Indicator light | LED | |
| maximum radiation leakage | <40mRh | |
| Light field switch | Auto | |
| Weight | 3.6kg | |
| Image Acquisition Workstat | Screen size/resolution | 19″，Resolution 1280*1024，Contrat 1000:1 |
| Memory | ≥8G | |
| Hard disk | ≥320G | |
| OS | Win7 | |
| Image format | DICOM3.0(can connect with RIS) | |
| Image storage capacity | ≥20000 images | |
| mamual input patients’ date or download form HIS/RIS through DICOM Worklist | ||
| CD-R writer (storage image) | ||
| Choosing Breast implants Function | ||
| Integrated design with High voltage generator, exposure specification setting in workstation |
- Power Requirement : One-Phase single phase 220V±20V AC
- Mains Frequency : 50Hz/60Hz
- Max Power : 5KW
- Standard Power : 4.8Kw
- Ma Range : 10~200mA
- MAS Range : 0.1~630mAS
- KV Range : 20~40KV
- Sample : Avaliable
